Use

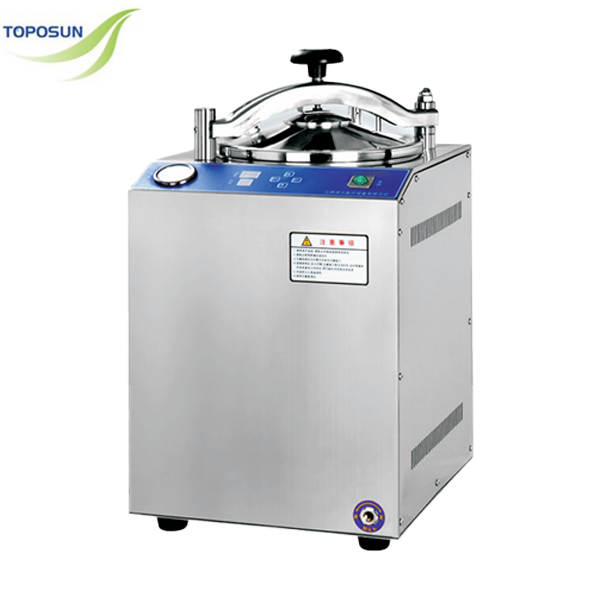

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Characteristics
• Fully automatically, no need for supervision, easy to use.
• Touch key, self-define of the sterilizing data.
• Hand wheel type of quick-open door structure, self inflating type seal, and with door safety lock system.
• Equiped with electric pressure temperature controller, constant voltage and temperature can be automatically kept when the unit reach the setting parameter.
• Rapid sterilizing, only required 4~6 mins.

Technical Data
MODEL

LS-28HD

Technical Data

Chamber volume

28L

φ270×500mm

Working pressure

0.22Mpa
Working temperature

134℃
Heat average

≤±1℃
Timer range

0-99mins
Temperature adjust range

105-134℃
Power

2KW/AC220V 50HZ

Overall dimension(mm） 400×370×700
Transport dimension（mm） 440×420×750
G.W/N.W

26Kg/23Kg
