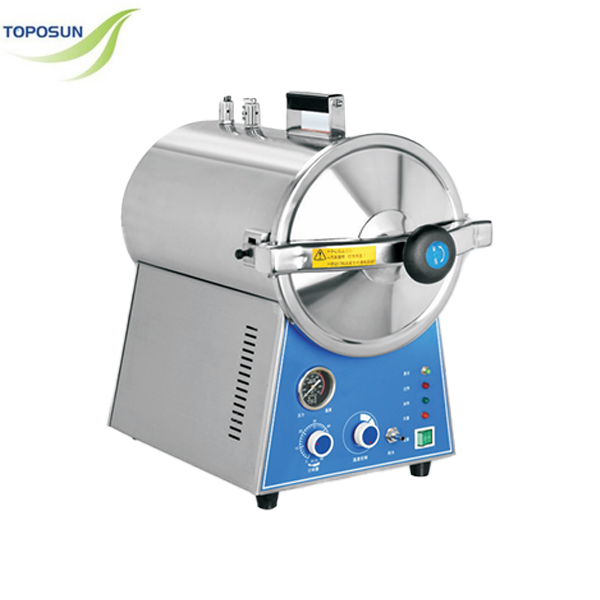

Use
The table type sterilizers are safely autocontrolled, which are designed for the dental clinics, hospitals, school lab. scientific research institutionsand laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food, etc.

Characteristics
• Sterilizing course: Automatic sterilization controlled by computer, easy to operate.
• Maximum temperature: 134℃, suitable for 4-6 minutes flash sterilizing.
• Safe protection of water lacking.
• With over heat and over pressure protection.
• After sterilization it will automatically cut the power and then alarm.
• Fully stainless steel structure.

Technical Data
MODEL

TM-T16J TM-T24J
Technical Data
Stenilizing chamber volume

16L

φ250×360mm

24L

φ270×410mm

Working pressure

0.22Mpa
Working temperature

134℃
Temperature adjust range

105-134℃
Timer range

0-60min
Heat average

≤±1℃

Power

1.5KW/AC220V.50Hz
Sterilizing plate

340×200×30(3piece)
Dimension（mm） 545×328×423 560×350×500
Exerior package dimension（mm） 605×390×480 620×410×570
G.W/N.W

17/15Kg 20/18Kg
