Use

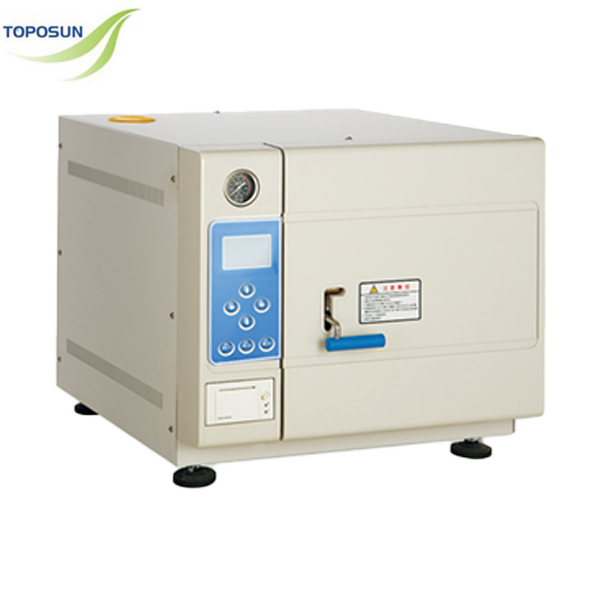

The table type sterilizers are safely autocontrolled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food, etc.

Characteristics
• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrumentis less than 0.2%.
• LCD display working status, touch keys.
• The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow,multi apertures and inset pipes. It makes sure the instrument can be sterilized completely.
• Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.
• It is installed with BOWIE&DICK which measures the penetration of water steam.
• It has vacuum test which can make sure the ability of vacuum testing.Fast and independent steam generator.
• Built-in mini printer which can record the sterilizing information.
• Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.
• It inactivates the HIV, HBV, BSE, and bacillus efficiently.

Technical Data
MODEL

TM-XD35DV TM-XD50DV TM-XD90DV
Technical Data
Stenilizing chamber volume

35L

φ300×500mm

50L

φ340×550mm

90L

φ400×720mm

Working pressure

0.22Mpa
Working temperature

134℃
Temperature adjust range

105-134℃
Timer range

0-99min
Heat average

≤±1℃

Power

AC220V 50Hz/2.7KW AC220V 50Hz/4KW
Dimension（mm）

730×550×510 770×600×540 1000×690×610
Exerior package dimension（mm）

810×680×650 880×730×700 1070×740×700
G.W/N.W

115/93Kg 130/106Kg 200/180Kg
