Use

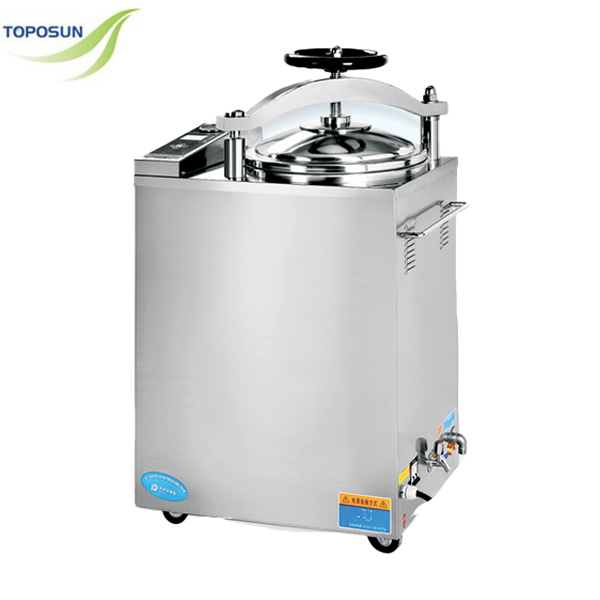

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects. convenient of operation and energy conservation. They are ideal equipments forthe scientific research institutes and the hospital laboratory.

Characteristics
• Fully stainless steel structure.
• Hand wheel type of quickopen door structure.
• Door safety lock system.
• Automatically controlled by computer.
• LCD display of working status, touch type key.
• Over temperature &over pressure autoprotection.
• Steamwater inner circulation system: no steam discharge, and the environmentfor sterilizing will be clean and dry.
• Selfinflating type seal.
• Safe protection of water lacking.o
• With perfect drying function.
• Automatically shut off with beep reminding after sterilization.
• With two stainless steel sterilizing baskets.

Technical Data

MODEL

LS-35HG

LS-50HG

LS-75HG

LS-100HG

Technical Data

Chamber volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

Working pressure

0.22Mpa

Working temperature

134℃

Max. working pressure 0.23Mpa
Heat average

≤±1℃
Timer range

0-99min/0-99hour59min
Temperature adjust range

0-134℃
Power

2.5KW/AC220V 50HZ

3KW/AC220V 50HZ
4.5KW/AC220V 50HZ

Overall dimension(mm） 600×410×1030 650×410×1140 690×470×1140 730×510×1270
Transport dimension（mm） 730×500×1170 730×500×1290 760×550×1290 820×600×1380
G.W/ N.W

96Kg/77Kg
102Kg/83Kg

120Kg/98Kg 135Kg/110Kg
