Use

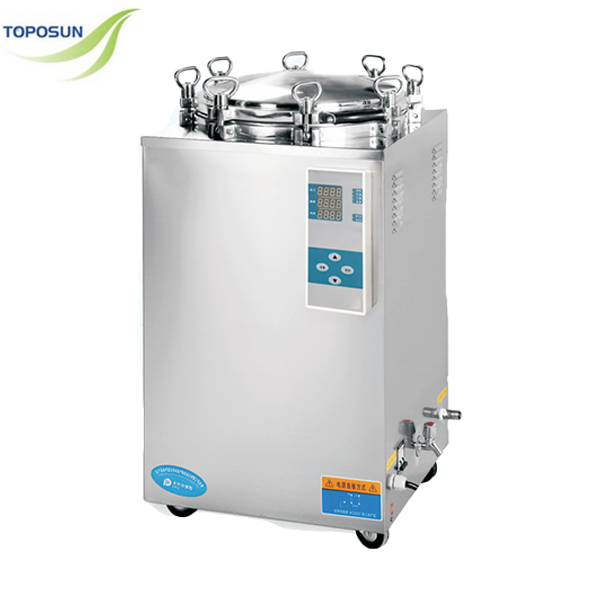

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Characteristics
• Fully stainless steel structure.
• LED display of working status, touch type key.
• Auto discharge the cool air, and steam discharging automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Easy to operate, safe and reliable.
• With two stainless steel sterilizing baskets.

Technical Data
MODEL

LS-35LD

LS-50LD

LS-75LD

LS-100LD LS-120LD
LS-150LD

Technical Data

Chamber volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

120L

φ480×660mm

150L

φ510×740mm

Working pressure

0.22Mpa
Working temperature

134℃
Max.working pressure 0.23Mpa
Heat average

≤±1℃
Timer range

0-99min/0-99hour59min
Temperature adjust range

105-134℃
Power

2.5KW/AC220V 50HZ

3KW/AC220V 50HZ
4.5KW/AC220V 50HZ

7KW/AC220V 50HZ
Overall dimension(mm） 480×460×850 520×520×980 560×560×980 590×590×1080 600×640×1140 670×690×1130
Transport dimension（mm） 570×550×970 590×590×1110 650×630×1150 680×650×1220 730×730×1270 760×760×1270
G.W/N.W

56Kg/42Kg
68Kg/50Kg

90Kg/70Kg 105Kg/85Kg 125Kg/100Kg 135Kg/110Kg
