Use

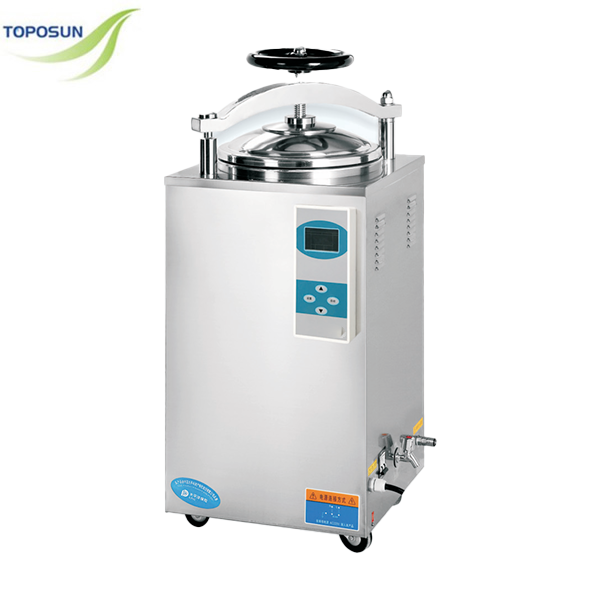

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
• Fully stainless steel structure.
• Auto discharge the cool air, and steam discharge automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Hand wheel type of quickopen door structure.
• Over temperature & over pressure autoprotection.
• Easy to operate, safe and reliable.
• Door safety lock system.
• With two stainless steel sterilizing baskets.
• LCD display of working status, touch type key.
• Safe protection of water lacking.
• With drying system.
• Self inflating type seal.
Technical Data
MODEL
LS-35HD
LS-50HD
LS-75HD
LS-100HD
Technical Data
Chamber volume
35L
φ318×450mm
50L
φ340×550mm
75L
φ400×600mm
100L
φ440×650mm
Working pressure
0.22Mpa
Working temperature
134℃
Max. working pressure 0.23Mpa
Heat average
≤±1℃
Timer range
0-99min or 0-99hour59min
Temperature adjust range
105-134℃
Power
2.5KW/AC220V 50HZ
3KW/AC220V 50HZ
4.5KW/AC220V 50HZ
Overall dimension(mm） 450×450×1010 510×470×1130 560×560×1120 540×560×1250
Transport dimension（mm） 570×550×1150 590×590×1280 650×630×1280 680×630×1370
G.W/ N.W
72Kg/56Kg
88Kg/68Kg
100Kg/80Kg 110Kg/85Kg
