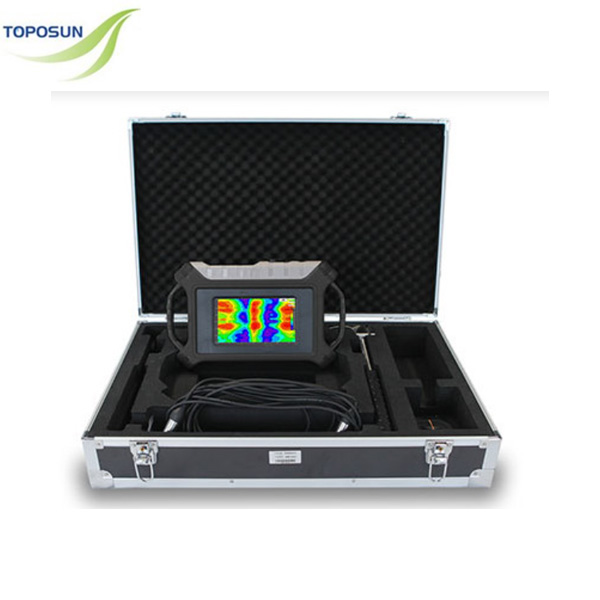

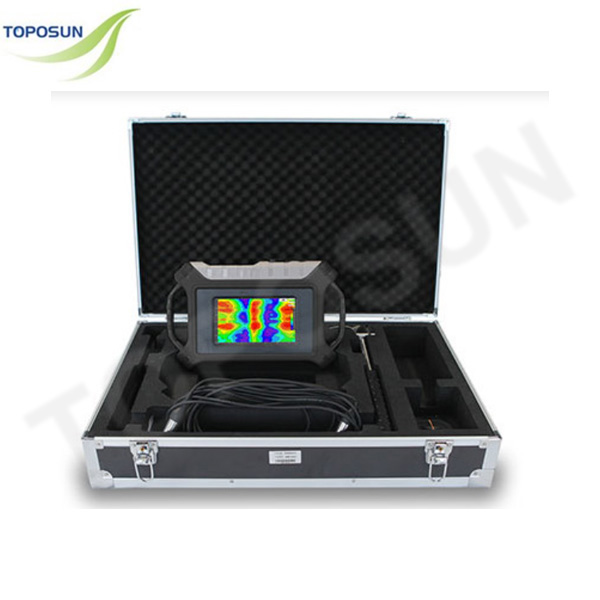

TPS-ADMT 300AX Single-Channel Professional Geophysical Survey Equipment

short description:

Model:
Best-selling versions: TPS-ADMT-300AX Other options: TPS-ADMT-600AX, TPS-ADMT-1200AX, TPS-ADMT-3000AX, TPS-ADMT-5000AX
Features:
Wired connection to electromagnetic probes or Bluetooth connection to the Golden-rod electromagnetic probe; 7″ Android touch screen for real-time imaging.

Product Detail

Product Tags

Automatic imaging.The 7″ Android touch screen is intelligent in real time into 2D, 3D and curved images.

Precise and stable.The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.

Triple screen interoperability.The instrument screen, mobile phone screen and computer screen are interoperable.

Intelligent and flexible.MN electrode and TT probe measurement can be switched, and wireless probe or water hunting Golden-rod can be selected.

MODELS AND TECHNICAL PARAMETERS
Model ADMT-300AX ADMT-600AX ADMT-1200AX ADMT-3000AX ADMT-5000AX
Max
Depth (m) ≤300 ≤600 ≤1200 ≤3000 ≤5000
Input 1 channel MN input
Channel
Option 1
Adjustable
Depth (m) 100-300 100-600 100-1200 100-3000 100-5000
Scan
Interval (m) 10-100
Connection Serial port, WiFi, Bluetooth 4.0, USB (Optional 4G)
Display 7-inch, IPS wide Angle, 178° visual touch screen
OS Android 13
CPU RK3568
GPU Mali G52
Features Optional depth, real-time 2D/3D imaging, removable battery
Measure
Model MN/TT
Frequency
Range (hz) 1-8K 0.001-8K
Frequency
Selective Preset frequency selection and intelligent frequency selection, analog + data filtering, 1-16 times stacking is optional
Resolution 0.1mV±2% 0.01mV±1%
Sampling
Time (s) 100-360 120-1500
Battery 700mA/H
Console Weight 1.6 kg
