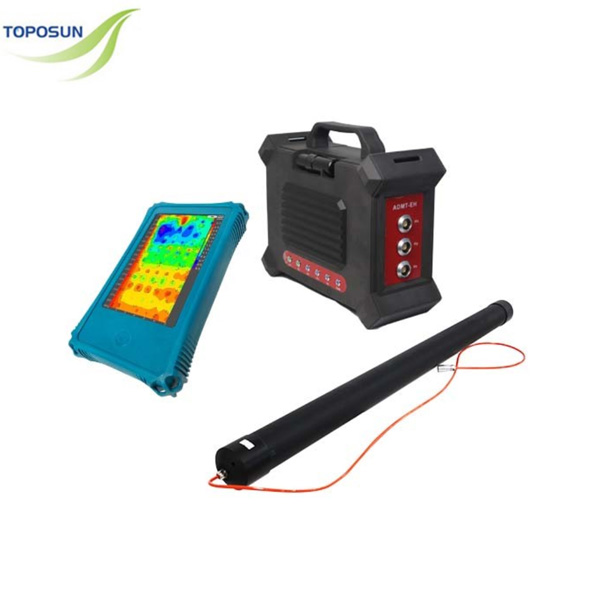

The TPS-ADMT-EH series magnetotelluric methods meter is an efficient and accurate measurement tool that can be used in mineral and geothermal exploration, geological disaster monitoring and investigation, hydrogeological exploration, environmental monitoring and other fields. Each acquisition unit is equipped with two electromagnetic and electric field measurement channels as standard. WiFi wireless connection allows simultaneous measurement. The maximum exploration depth reaches 8,000 meters. The instrument can directly display Ex, Ey, Hx, and Hy apparent resistivity data, and automatically draw curves and contour maps. , within the maximum depth range, 10-meter depth intervals are selected.

TECHNICAL PARAMETERS
Console
Display Screen 7-inch IP highlight touch screen, automatic rotating
Resolution 800*1280
Connection Multi-functional magnetic suction connector (including charging, USB, signal input), WiFi, Bluetooth
Core Features Optional depth and real-time 2D/3D mapping
OS Android 13
CPU RK3568 quad-core
RAM 4GB
Storage 32GB
Battery 8.4V/6000mAH (can be connected to an external mobile power bank)
Power Consumption 6W
Charging 5V3A, compatible with most mobile phone chargers
Dimensions 238*139*53mm
Weight < 1 kg
Working Environment -20℃～+60℃，95％RH
Acquisition Unit
Versions EH1 EH2 EH4 EH6 EH8
Max Depth (m) ≤1000 ≤2000 ≤4000 ≤6000 ≤8000
Depths Options (m) 10-1000 10-2000 10-4000 10-6000 10-8000
Channel Mode MN + TT
Connection Wifi
Frequency Range 0.001~25000 Hz
Sensitivity 1%Fs
Resolution 1uV
Frequency-selective
Filtering Pre-set frequency and intelligent frequency selection, analog + digital filtering
Input Impedance ≥ 1M
Suppression of 50Hz
working interference ≥ 60dB
Sampling Time 10~1380s
Dimensions 320*135*240mm
Battery 12.6V/20000mAh
Power Consumption 13W
Weight 3.5kg
Working Environment -20℃～+60℃，95％RH
