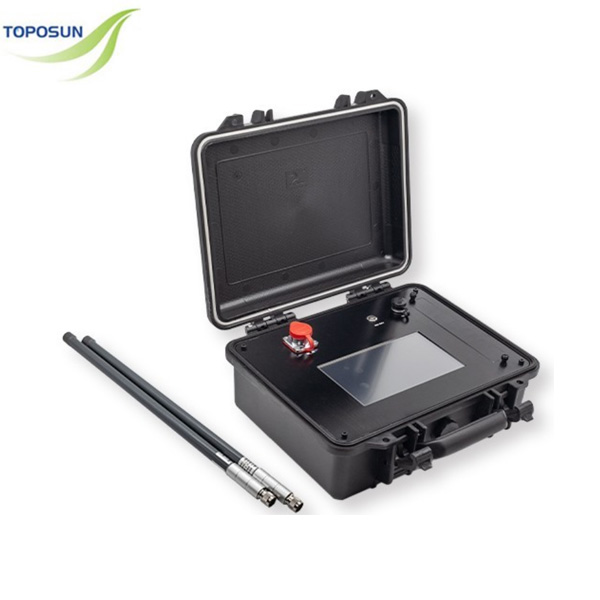

he 96 or 128-channel cascade high-density MT electromagnetic instrument has powerful performance, which effectively solves the MT field source changing at any time and obtains a stable field source; the exploration depth reaches 5000, breaking through the depth limit of the traditional high-density electrical instrument; The number of measurement channels, electric field and electromagnetic field measurement modes are optional.

MAIN MODELS
AND TECHNICAL PARAMETERS
Model ADMT-300AX-32D ADMT-600AX-32D ADMT-1200AX-32D ADMT-3000AX-32D ADMT-5000AX-32D
Max
depth (m) ≤300 ≤600 ≤1200 ≤3000 ≤5000
Channel
input 32 channels input simultaneous, electrode distance≤5m
Channel
option 1-30
Adjustable
depth 5/10/20/40/60/100/ 200/300/500/800/ 1200/2000/3000/4000/5000m
Layer
division 60-200
Connection Serial port, WiFi, Bluetooth 4.0, USB
Display 10.1 -inch, IPS wide Angle, 178° visual touch screen
Operating
system Android6.0.1, RAM 1GB, ROM 8GB (expandable 128GB)
CPU ARM Cortex-A7, 8-core CPU, 2.0Hz
GPU OpenGL ES 2.0
Main
function Depth optional, channel number optional, real-time 2D/3D imaging, battery removable
Measure
model MN/TT
Frequency
range (hz) 0.001-7K
Frequency
selective Preset frequency selection and intelligent frequency selection, analog + data filtering, 1-16 times stacking is optional
Resolution 0.001mV±2% 0.001mV±1%
Sampling
time (s) 120-9000 280-14400
Battery 900mA/H 1100mA/H
Weight 3kg
