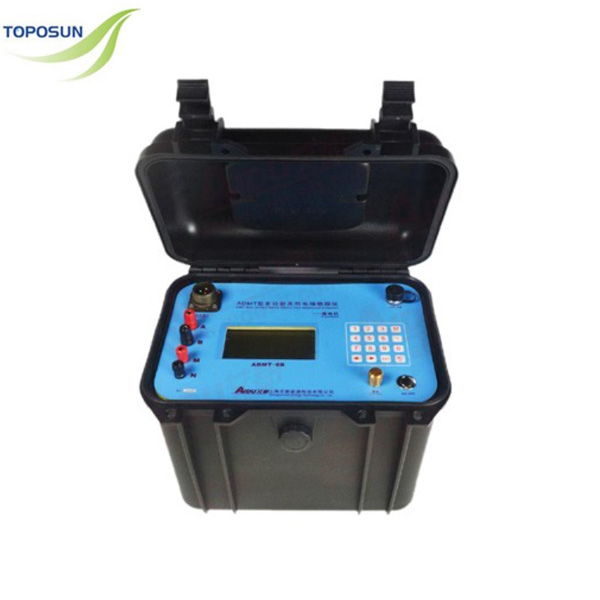

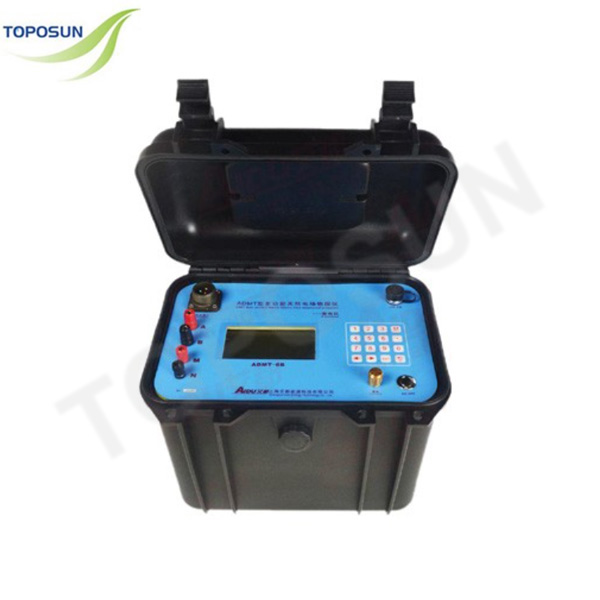

TPS-Multi-Function DC Resistivity & IP Geophysical Instrument

short description:

Model:
ADMT-6B
Features:
It has changed the disadvantages of traditional electrical exploration equipment in large size, heavy weight, and professional use, making the instrument more compact and lighter, and supporting intelligent analysis software, which has the remarkable char

Product Detail

Product Tags

High Accuracy. using the most advanced circuit design, single chip microcomputer control, automatic noise reduction,digital filtering to highly improve survey accuracy and stability.

Easy to operate.humanized man-machine interface, built-in all kinds of formulas to read VP, IP, RO, M, TH… parameters.

More Parameters.could measure VP, IP, SP, RO, M, TH….

Complete Equipment.four poles to detect depth, intermediate gradient, combined profile, five poles, three poles etc….about 30 kinds.
MAIN MODELS
AND TECHNICAL PARAMETERS
Parameter ADMT-6B
Voltage
measurement range -2500mV～＋2500mV
Voltage resolution 0.001mv
Input impedance ≥50MΩ
Apparent susceptibility
measurement accuracy ±1% ±1digit
SP compensation range ±2500mV
Current channel 6A, ±4% ±1digit
Current resolution 0.02uA
Suppress 50Hz power
frequency interference Better than 80dB
Max. transmit power 6000W
Upper limit
of supply voltage 1000V
Upper limit
of supply current 6A
Power supply waveform Pulse width 1-60 seconds, duty ratio 1:1, bipolar
RAM 2GB (support 32GB expansion)
Power supply 14.8V 5200mAH lithium battery
Working environment -10℃～+50℃，95%Rh
Storage temperature -20℃～+60℃
