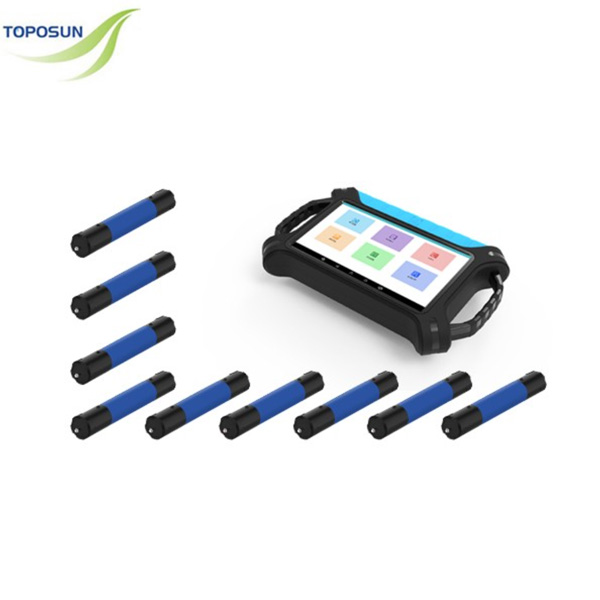

TPS-Three-dimensional Matrix High-density Electromagnetic Exploration System

short description:

Model:
ADMT-WF100GT1
Features:
Products advantages: 1.Fully wireless. No complicated cables. 2.One button minimalist design. Only one power button, no other button. 3.Connecting mobile phone by bluetooth. Connecting mobile phone for detection/mapping/logging well. 4.Detec

Send email to us

Product Detail

Product Tags

Fully wireless detection.

length： 46-130cm, Light-weight： 1.1-3.6KG.

Handle by one person.

Processing by put it on the ground or hold it or carry it .

MODELS AND TECHNICAL PARAMETERS
Model ADMT-WF100GT1
Adjustable
depth (m) 5/10/20/40/80/100m
Battery 8.4V 3300mAH lithium battery
Connection WIFI
MN
electrode Copper 12mm φ12 or self-made electrode
Display 10.1 inch Android system dedicated control host
Main
functions automatic imaging
TT EMI
coil (mm/w) 150/0.2
TT EMI
core (KmH/m) 120
Working
condition Any grounds
Frequency
range (Hz) 100-10K
Measuring
mode MN/TT
Resolution 0.001mV±2%
Sampling
time (s) 40-120
Depth
layering 5-100
Length
Weight (cm/kg) 50 / 2
