Use

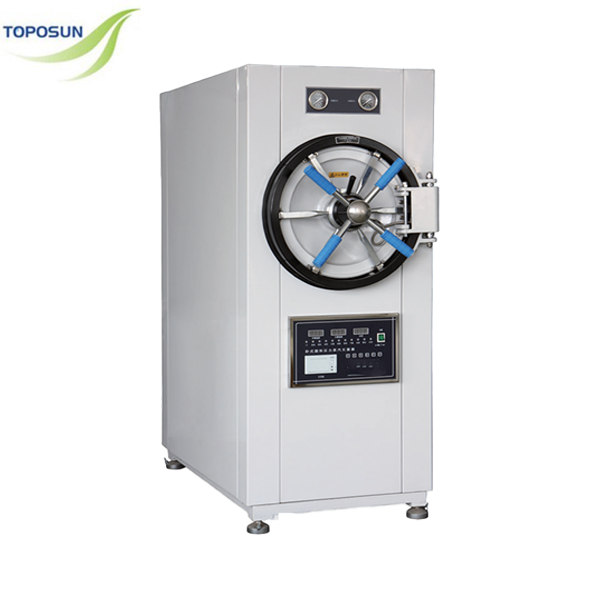

The horizontal autoclave, which adopte the way of gravity exchange to release the cold air from the chamber more completely toensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chambertemperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations tosterilize surgical instruments, fabric glassed, and the culture media etc.

Characteristics
• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the Idoor doesn’t close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel.
• With printer.

Technical Data
MODEL

WS-150YDB WS-200YDB WS-280YDB
Technical Data
Stenilizing chamber volume

150L

φ440×1000

200L

φ515×1000

280L

φ600×1000

Working pressure

0.22Mpa
Working temperature

134℃
Temperature adjust range

40℃-134℃
Time for sterilization

0-99min
Time for drying

0-99min

Heat average

≤±2℃
Power

9kw/380V 50Hz 9kw/380V 50Hz 12kw/380V 50Hz
Dimension（mm）

1400×650×1600 1400×750×1700 1520×910×1900
Exerior package dimension（mm）

1560×820×1820 1560×910×1880 1680×1080×2100
G.W/N.W

430/340kg 436/350kg 570/462Kg
