It meets the following standards but is not limited to the following standards:

《GB/T 2539-2008》

Summary:

Melting point (cooling curve) is especially suitable for petroleum waxes with relatively high paraffin content or crystallization type, which contain large amounts of crystallized hydrocarbon at the same temperature. During the cooling process, the melting heat is released, and the cooling rate is temporarily delayed to form stagnation zone on the cooling curve.

The device automatically collects the temperature curve, automatically calculates and identifies the temperature stagnation zone, and calculates the melting point of the sample.

Technical advantages:

1. Operation mode: full automatic control. This equipment can test melting point temperature without manual monitoring of temperature change

2. It can customize “Water-Bath Set-Temp”, “Sampling interval” and “Temp retention times”, etc., intelligent and automatic, which can be applied to different customer experimental requirements.

3. Control method: adopt PID temperature control program, water bath heating, internal circulation system, make even heating.

4. The 5-inch and 24-bit color touch screen can read the curve directly on the touch screen, and the test can be completed without training. The operation is simple and convenient.

5. Data output: the standard USB interface or RS 232 serial port can be connected to the computer and controlled by software to collect temperature curve.

6. Two or five Pt100 temperature probes are configured, one of which is built in to control the water bath temperature and the other one to test the sample temperature, greatly reducing the temperature test error.

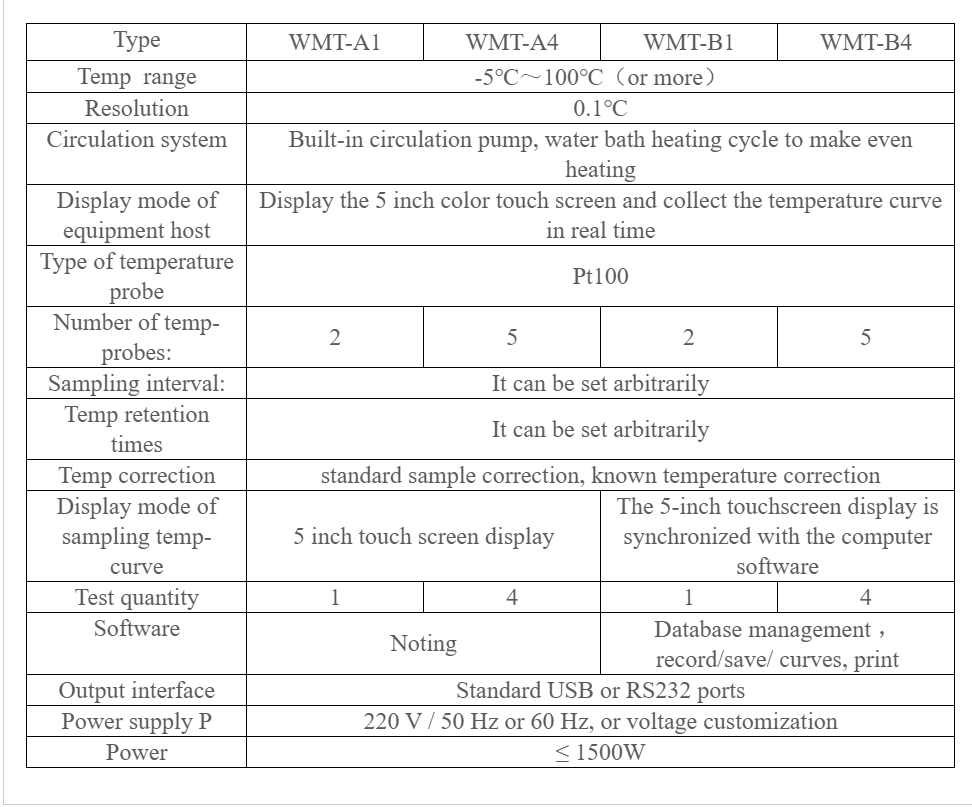

Parameters:
