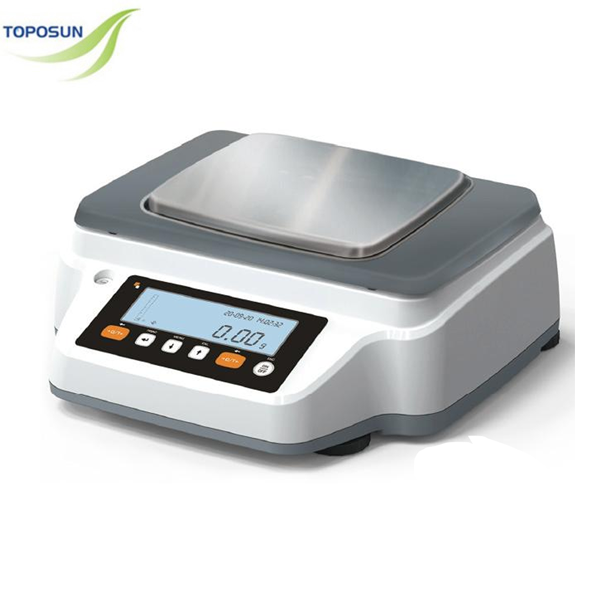

Features
High‑precision electromagnetic force sensor
Dot‑matrix graphical display
External calibration
GLP/ISO calibration data recording
Multi‑language (EN, DE, FR, IT, SP, PT)
RS232 serial interface
Recipe, check weighing, percentage weighing
Accumulation, animal weighing, peak hold
Keypad protective cover
Under weighing
Optional Accessories
Ioniser (lon‑A15 / BL0371)
Serial printer (TLP‑50, DPP‑250)
PC data collection software (BL0476)
RS232‑USB converter (E1002)
Serial cable (E743)
Applications
Food industry, gold jewelry, scientific research, medicine, parts inspection
Specifications
Model Capacity Readability Pan Size Repeatability Linearity Stable Time
XY6202RBG 6200g 0.01g 195×175mm 0.01g ±0.03g ≤4s
XY8202RBG 8200g 0.01g 195×175mm 0.01g ±0.03g ≤4s
XY10102RBG 10100g 0.01g 195×175mm 0.01g ±0.03g ≤4s
XY12102RBG 12100g 0.01g 195×175mm 0.01g ±0.03g ≤4s
