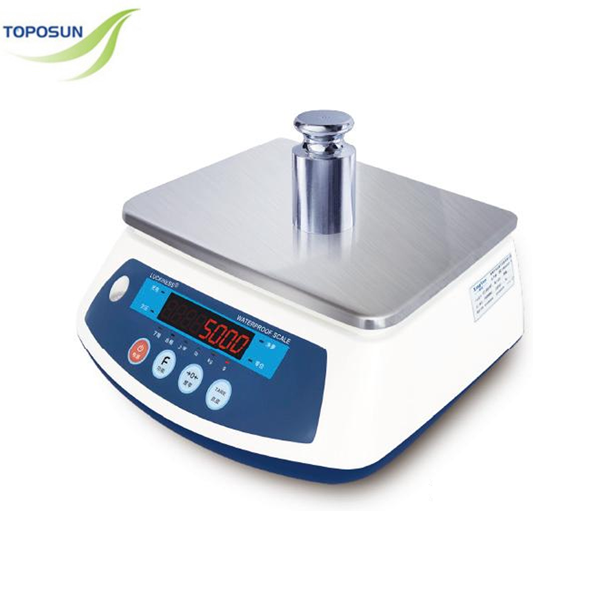

Features
Appearance & utility model patents
Full waterproof design (IP68)
CE, RoHS, LFGB certified
Shockproof, fully washable
Stainless steel bearing bracket
Waterproof sealed mainboard & keypad
Waterproof sleeve sensor
LED digital display (dual display optional)
Tare, counting, check weighing
Unit conversion (g/kg/lb…)
AC/DC power supply, long battery life
Power‑saving mode optional
Overload alarm
Applications
Wet environments, food processing, seafood, chemical industry
Specifications
Model Capacity Readability Min Weighing Repeatability Linearity Stable Time Pan Size
XY3KB1WP 3kg 0.1g 4d ±2d ±3d ≤0.5s 190×235mm
XY3KB5WP 3kg 0.5g 4d ±2d ±3d ≤0.5s 190×235mm
XY3KA1WP 3kg 1g 4d ±2d ±3d ≤0.5s 190×235mm
XY6KA1WP 6kg 1g 4d ±2d ±3d ≤0.5s 190×235mm
XY6KA2WP 6kg 2g 4d ±2d ±3d ≤0.5s 190×235mm
XY7.5KA1WP 7.5kg 1g 4d ±2d ±3d ≤0.5s 190×235mm
XY7.5KA2WP 7.5kg 2g 4d ±2d ±3d ≤0.5s 190×235mm
XY15KA5WP 15kg 5g 4d ±2d ±3d ≤0.5s 190×235mm
XY30KA5WP 30kg 5g 4d ±2d ±3d ≤0.5s 190×235mm
Operating Temp: −20°C ~ +40°C
Display: 6‑digit LED (front & back dual display)
Power: 6V/5AH maintenance‑free rechargeable battery (40–60 hours life)
Dimensions: 290×280×145mm
Packing Size: 345×325×195mm / 685×365×425mm (4 units)
Gross Weight: 5kg / 20kg (4 units)
Calibration Weight: 2kg, 3kg, 5kg, 10kg, 15kg
