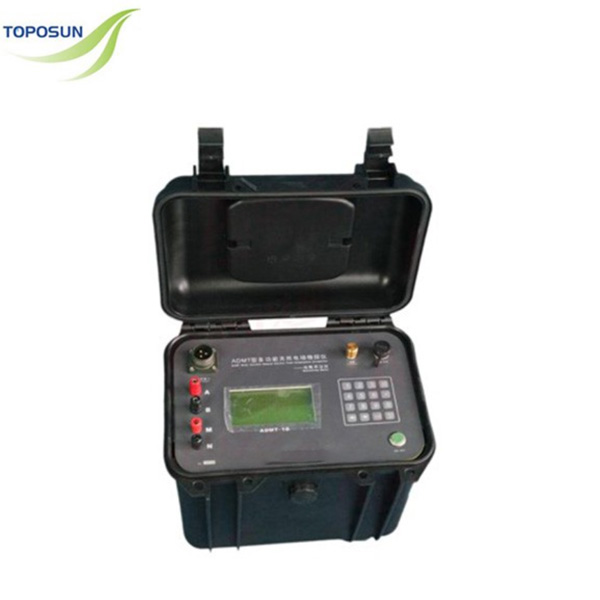

TPS-ADMT-1B Electrical Resistivity Meter for Groundwater Exploration

short description:

Model:
TPS-ADMT-1B
Features:
The TPS-ADMT-1B water detector by TOPOSUN, built on electrical resistivity methods, features advanced circuitry for high accuracy, a multilingual interface, and a waterproof ABS casing, supporting four-pole sounding and central gradient measurements.

Product Detail

Product Tags

High precision：The latest circuit design, single-chip control, automatic noise reduction, and digital filtering to greatly improve the measurement accuracy and stability.

Simple operation：User-friendly interface with a variety of built-in formula calculations.

Versatile configurationt：Supports multiple electrode arrangements, including four-pole sounding and central gradient.
MAIN MODELS
AND TECHNICAL PARAMETERS
Parameter TPS-ADMT-1B
Voltage
measurement range -2500mV～＋2500mV
Voltage resolution 0.01uV
Input impedance ≥50MΩ
SP compensation range ±2500mV
Current channel 6A, ±4% ±1digit
Current resolution 0.02uA
Suppress 50Hz power
frequency interference Better than 80dB
Max. transmit power 6000W
Upper limit
of supply voltage 1000V
Upper limit
of supply current 6A
Power supply waveform Pulse width 1-60 seconds, duty ratio 1:1, bipolar
RAM 2GB (support 32GB expansion)
Power supply 14.8V 5200mAH lithium battery
Working environment -20℃～+60℃，95%Rh
