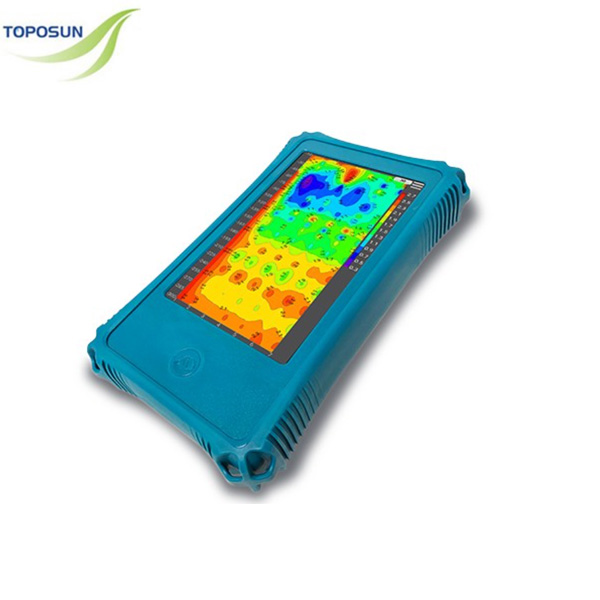

TOPOSUN’s water finding Golden Rod is completely wireless and easy to operate with significantly improved accuracy. It features segmented and multi-density scanning to meet specific customer needs. Equipped with AI intelligent analysis, it serves as your 24/7 free online assistant. It can also automatically generate 2D/3D/slice images, providing intuitive view of underground water distributions, making it more scientific for borehole siting decisions
TECHNICAL PARAMETERS
Versions TPS-ADMT-3H TPS-ADMT-3HT2 TPS-ADMT-3HT3 TPS-ADMT-8HT2 TPS-ADMT-8HT3
Max Depth (m) 300 800
Scan Interval 5/10/20(m)
Battery 7.4V 2600mAH lithium battery, Power consumption approx. 140mA
Connection WIFI, Bluetooth
MN Electrodes Four L-shaped alloy electrodes, each with a size of 100*95*30mm
Core Features selectable depth sections, variety in scan interval options, auto 2D/3D imaging, AI expert interpretation of image, on/offline operation
TT Coil（mm/w） - 300/4 300/4 450/8 550/8
TT Iron Core（KmH/m） - 80 100 100 120
Ground Conditions soft ground only all grounds
Freq. Range (hz) 1-8K
Sensing Mode MN MN/TT
Discrim. 0.1mV±5% 0.01mV±1%
Acquisition Time (s) 14-420 14-420 14-700 14-420 14-700
Main Unit Weight (kg) 0.8 1.9 2.6
Main Unit Size (mm) 340*71 650*71 790*71
Shipping Weight(kg) 4.0 5.6 6.5
Shipping Size (mm) 53*21*18 77*21*18 92*21*18
