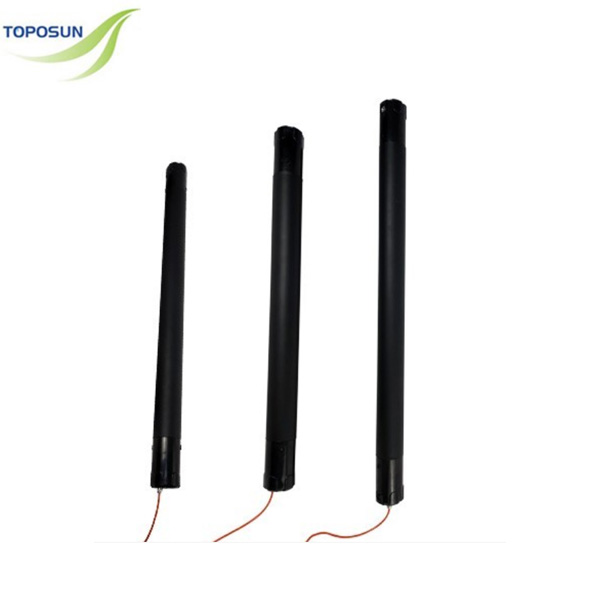

TPS-TT Electromagnetic probes

short description:

Model:
Use with smart hosts, several hosts available
Features:
It is not affected by the terrain and can measure on rocks, concrete pavements and infill surfaces, solving the disadvantage that MN electrodes cannot be inserted underground. It is easy to carry and can be measured by a single person walking or stopping.

Product Detail

Product Tags

Wired electromagnetic probes are optional and can be used with intelligent hosts, a variety of hosts are available.

Wired electromagnetic probe use will not need to pull MN measurement line, directly using the wired electromagnetic probe signal input, ADMT series wired electromagnetic probe has several specifications products, frequency range 0.001HZ to 30KHZ, measurement depth is not limited, the frequency range is not the same its length and weight is not the same, the sensor accuracy is not the same.
MAIN TECHNICAL PARAMETERS
Model TPS-ADMT-T3 TPS-ADMT-T4 TPS-ADMT-T5
Depth No depth limit
Recommended depth < 800m No depth limit
Recommended depth < 1200m No depth limit
Recommended depth < 3000m
Power 8W 12W 16W
Weight 3.3kg 4.5kg 5.7kg
Size φ7*73cm φ7*87cm φ7*102cm
