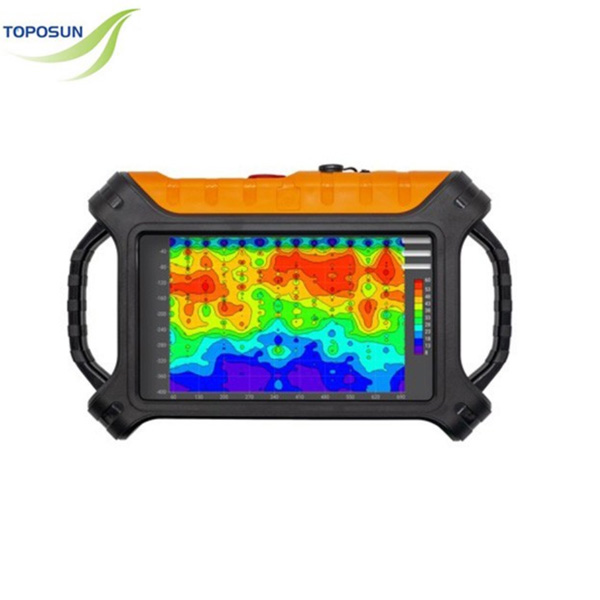

Automatic Imaging: The 10.1-inch Android touchscreen intelligently generates 2D/3D images and curve graphs.

Stable and Accurate: Addresses the inconsistencies and fluctuations in the strength of the natural electromagnetic field, significantly enhancing the accuracy of survey results.

Cross-Device Operation: The instrument, mobile device, and PC can all operate seamlessly using the same backend data.

Smart and Flexible: Channels from 1 to 14 can be selected, with optional electromagnetic probes for TT mode measurements.
MAIN MODELS AND TECHNICAL PARAMETERS
Versions TPS-ADMT-200AX-16D TPS-ADMT-500AX-16D
Max Depth (m) ≤200 ≤500
Channel Input 16 channels of simultaneous input. Standard maximum electrode spacing: 2.5m; optional: 5m/7.5m/10m
Channel Options 1-14
Depth Options 5 / 10 / 20 / 40 / 60 / 100 / 200 m 60 / 100 / 200 / 300 / 400 / 500 m
Scan Interval 10-100 m
Connection Serial port, WiFi, Bluetooth 4.0, USB (optional 4G transmitting）
Display 10.1 inch, IPS wide angle, 178° visual touch screen (1024×600)
OS Android 6.0.1 / Android 13
CPU ARM Cortex-A7 8-core CPU 2.0Hz / RK3568
GPU OpenGL ES 2.0 / Mali G52
Core Features Depth: optional, channels: optional, real-time 2D/3D imaging, detachable battery
Meas. Mode MN/TT
Freq. Range (Hz) 1-8K
Discrim. 0.1mV±2%
Acq. Time (s) 40-3600
Battery 900mA/H
Main Device Weight 2.8kg
