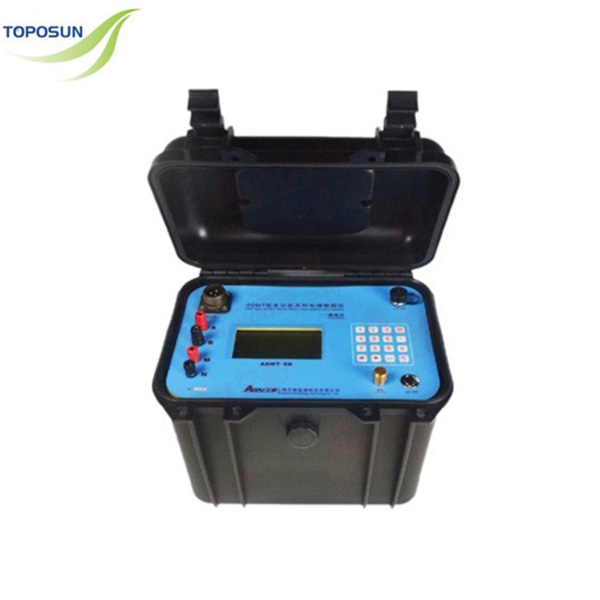

TPS-ADMT-6B Multi-Function Electrical Resistivity Meter for Groundwater Exploration

short description:

Model:
TPS-ADMT-6B
Features:
The DC resistivity & IP instrument is a reliable, cost-effective tool for groundwater exploration, offering mature technology and proven performance, delivering significant economic benefits to well-drilling units and individuals.

Product Detail

Product Tags

High precision：The latest circuit design, single-chip control, automatic noise reduction, and digital filtering to greatly improve the measurement accuracy and stability；

Simple operation：Humanized man-machine interface, built-in formula calculation of various devices, direct reading VP, IP, SP, RO, M, TH and other related parameters；

Many parameters：VP, IP, SP, RO, M, TH and other related parameters can be measured；

Complete equipment：Ten types of equipment including four-pole sounding, intermediate gradient, joint profile, five-pole, and three poles.

TECHNICAL PARAMETERS
Parameter TPS-ADMT-6B
Voltage
measurement range 2500mV～＋2500mV
Voltage resolution 0.001mv
Input impedance ≥50MΩ
Apparent susceptibility
measurement accuracy ±1% ±1digit
SP compensation range ±2500mV
Current channel 6A, ±4% ±1digit
Current resolution 0.02uA
Suppress 50Hz power
frequency interference Better than 80dB
Max. transmit power 6000W
Upper limit
of supply voltage 1000V
Upper limit
of supply current 6A
Power supply waveform Pulse width 1-60 seconds, duty ratio 1:1, bipolar
RAM 2GB (support 32GB expansion)
Power supply 14.8V 5200mAH lithium battery
Working environment -10℃～+50℃，95%Rh
Storage temperature -20℃～+60℃
Main unit weight 4.2kg
