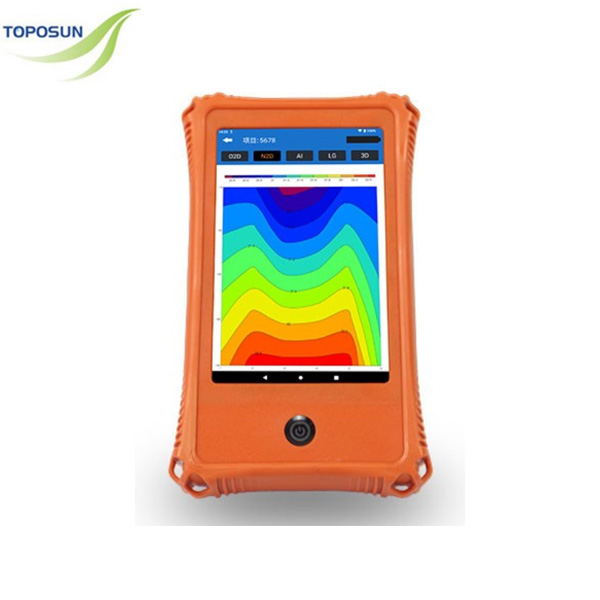

ADMT ZN Series Speedy Ground Water Detector, launched in 2023, is TOPOSUN’s latest innovation in ground water exploration technology. This single device is compatible with single, 12, 24, 36, 48, and 60 channels. Compared to traditional multi-channel products, it boasts significantly faster measurement speeds and enhanced accuracy. The ZN Series can acquire ten times the amount of data in the same time frame, drastically improving work efficiency
TECHNICAL PARAMETERS
Versions TPS-ADMT-180ZN TPS-ADMT-300ZN TPS-ADMT-600ZN TPS-ADMT-900ZN TPS-ADMT-1200ZN
Max Depth (m) ≤180 ≤300 ≤600 ≤900 ≤1200
Scan Interval 5/10 M 10 M 10/15 M
Channel Options All channels share one console (extension to multi-channels just by increasing accessories and upgrading to enhanced cable). Multi-channel options support both MN and TT
Meas. Mode MN/TT
Freq. Range (hz) 1-6500 HZ
Filtering FFT Smart
Discrim. 0.01mV±2%
Acq. Time (s) 10s
Connection Circular Connection, wifi 5, bluetooth 4.2
Display 7 “IPS high brightness touch screen, Automatic screen rotation
Resolution 800*1280
OS Android 13
CPU RK3568
GPU Mali G52
RAM LDDR4/4GB
Storage 32GB
Core Features All channels in one, Custom depths focusing, Real-time curve/contour mapping, AI-driven image interpretation, Cross-device interconnection, Free software upgrade
Other Features Camera (incl. fill flash), GNSS, Wireless screen casting, Multi-device interconnection, Water and dust proof
Battery 6000mAh
Main Device Dimensions & Weight 23.8cm*19.3cm*5.6cm, 1.05 KG.
