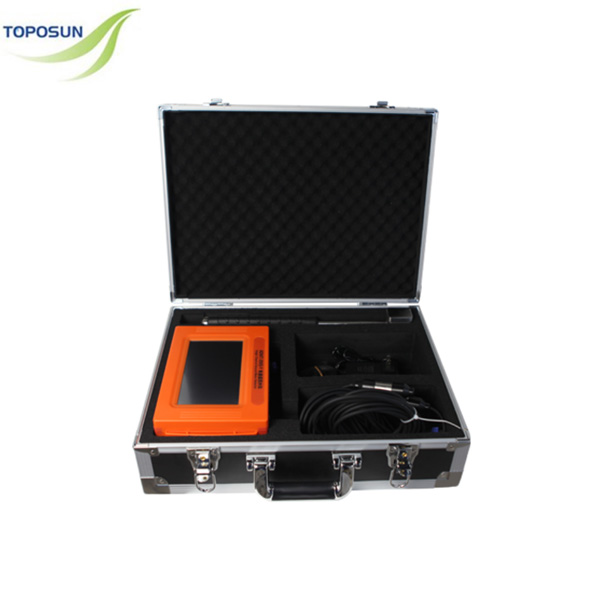

The ADMT-200S-Y and ADMT-300S-Y single-channel ground water detectors are designed based on the magnetotelluric method, with simplified core functions. The instruments can measure the values of electric and electromagnetic fields. After processing the data through denoising, smoothing, source correction, and model inversion, users can generate 2D and 3D geological images on-site during surveys.

The device is developed based on the Android operating system and can utilize functions such as GPS, storage, camera, instant messaging, and cloud backup from the mobile phone. The system integrates global geological data and big data analytics to automatically analyze the collected geological information, thereby accurately determining the location, depth, and yield of underground water.

TECHNICAL PARAMETERS
Versions TPS-ADMT-200S-Y TPS-ADMT-300S-Y
Max Depth (m) ≤200 ≤300
Channel Num Single
Meas. Mode MN/TT
Scan Interval 5 M
Freq. Range (hz) 1-8000 HZ
Discrim. 0.1mV±5%
Acq. Time (s) 130
Connection bluetooth
Display 7 “IPS high brightness touch screen
Core Features Curve imaging, Data output to phone for 2D/3D imaging，AI insight for image interpretation，Detachable battery
Battery Power 4W
Main Device Weight 1.3 KG
