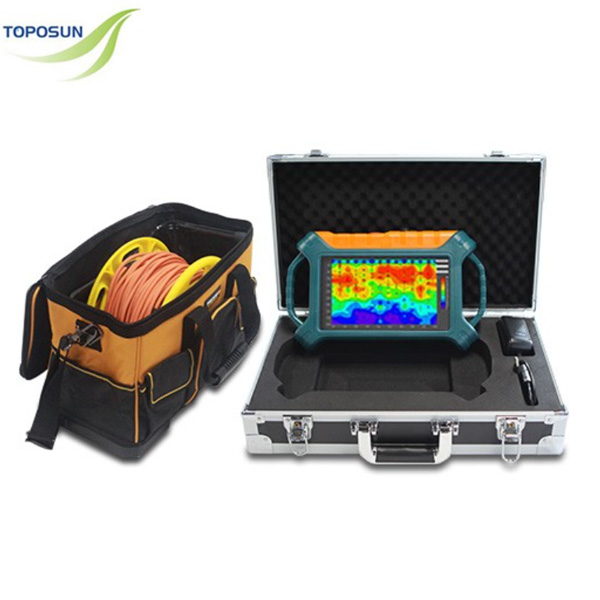

Automatic Imaging: The 10.1-inch Android touchscreen intelligently generates 2D/3D images and curve graphs.

Stable and Accurate: Addresses the inconsistencies and fluctuations in the strength of the natural electromagnetic field, significantly enhancing the accuracy of survey results.

Cross-Device Operation: The instrument, mobile device, and PC can all operate seamlessly using the same backend data.

Smart and Flexible: Channels from 1 to 14 can be selected, with optional electromagnetic probes for TT mode measurements
TECHNICAL PARAMETERS
Versions TPS-ADMT-300SX-16D TPS-ADMT-500SX-16D TPS-ADMT-1200SX-16D TPS-ADMT-2000SX-16D TPS-ADMT-3000SX-16D
Max Depth (m) ≤300 ≤500 ≤1200 ≤2000 ≤3000
Channel Input 16 channels of simultaneous input with a standard electrode spacing of 2.5m, and optional spacings of 5m, 7.5m, or 10m
Channel Options 1-14
Depth Options Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m
Scan Interval 10-80
Connections Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)
Display 10.1-inch IPS wide-angle 178° visual touch screen (1024×600)
OS Android 6.0.1 / Android 13
CPU ARM Cortex-A7 8-core CPU 2.0Hz / RK3568
GPU OpenGL ES 2.0 / Mali G52
Core Features Multiple options of depths, 2D/3D plotting, removable battery
Sensing Mode MN/TT
Frequency Range (hz) 1-8K 0.01-6K
Filtering Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional
Discrim. 0.1mV±3% 0.01mV±2%
Acquisition Time (s) 60-3600 120-5400
Battery 800mA/H
Console Weight 1.85kg
