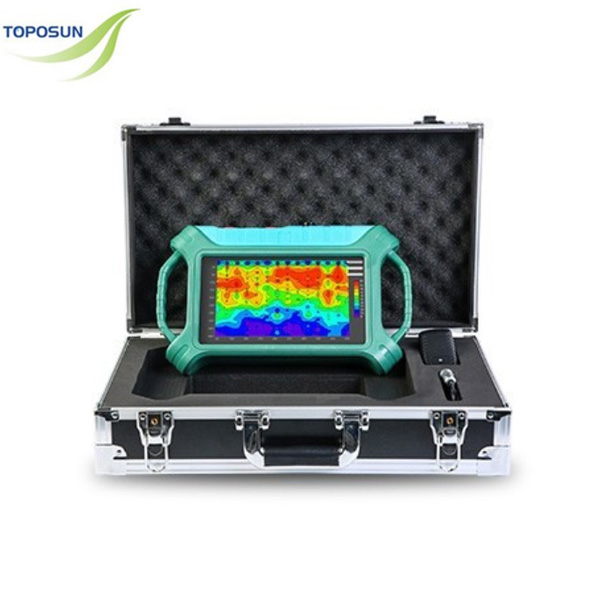

Automatic Imaging: The 10.1-inch Android touchscreen intelligently generates 2D/3D images and curve graphs.

Stable and Accurate: Addresses the inconsistencies and fluctuations in the strength of the natural electromagnetic field, significantly enhancing the accuracy of survey results.

Cross-Device Operation: The instrument, mobile device, and PC can all operate seamlessly using the same backend data.

Smart and Flexible: Channels from 1 to 30 can be selected, with optional electromagnetic probes for TT mode measurements
TECHNICAL PARAMETERS
Versions TPS-ADMT-400SX-32D TPS-ADMT-600SX-32D TPS-ADMT-1200SX-32D TPS-ADMT-3000SX-32D TPS-ADMT-4000SX-32D
Max Depth(m) ≤400 ≤600 ≤1200 ≤3000 ≤4000
Channel Input 32 channels of simultaneous input with a standard electrode spacing of 2.5m, and optional spacings of 5m, 7.5m, or 10m
Channel Options 1-30
Depth Options 100/200/300/400/500/600/800/1200/2000/3000/4000m
Scan Resolution 40-160
Connection Serial port, WiFi, Bluetooth 4.0, USB(optional 4G)
Display 10.1 -inch, IPS wide Angle, 178° visual touch screen (1024×600)
OS Android 6.0.1 / Android 13
CPU ARM Cortex-A7 8-core CPU 2.0Hz / RK3568
GPU OpenGL ES 2.0 / Mali G52
Core Features Flexible depth options, customizable channel number options, real-time 2D/3D imaging, battery removable
Meas. Mode MN/TT
Freq. Range (Hz) 1-8K 0.01-6K
Freq. Selection Preset frequency selection and intelligent frequency selection, analog + data filtering, options of 1-16 times stackings
Resolution 0.001-7K
Acq. Time (s) 120-7200 160-9000
Battery 900mA/H
Main Unit Weight 2.0 kg 2.2 kg
