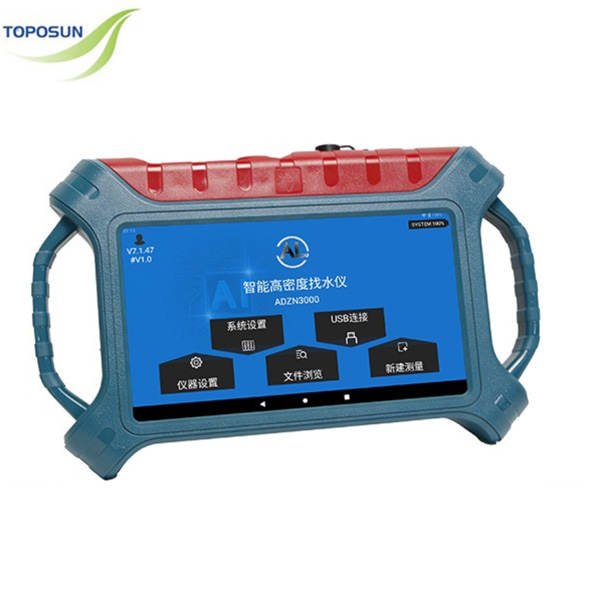

Powerful Functionality
Single unit supports 1-60 channels with a complete built-in intelligent system, capable of detecting both shallow and deep groundwater sources. Maximum exploration depth reaches 3000 meters, with ultra-fast precise measurement in as little as 13 seconds.
Intelligent and Efficient
Automatic imaging and AI-powered image analysis for quick, insightful results.
Flexible Operation
Supports both MN (electrode) and TT (magnetic sensor) modes, adapting to diverse field conditions.
Precise and Customizable
Freely customize target depth and precision levels to balance survey speed and accuracy. Automatic channel recognition with cascade expansion support up to 60 channels.
TECHNICAL PARAMETERS
Versions TPS-ADZN300 TPSADZN600 TPS-ADZN1200 TPS-ADZN3000
Max Depth (m) ≤300 ≤600 ≤1200 ≤3000
Scan Interval 10 M
Channel Options One device for 1-60 channels, standard with single channel (MN), optional MN channel extension and TT sensor
Meas. Mode MN/TT
Freq. Range (hz) 0.1-6500 HZ
Filtering FFT Smart
Discrim. 0.01mV±2%
Acq. Time (s) 15s
Connection 19-pin aviation socket (compatible with MN cables and TT sensors), 7-pin aviation socket (charging port / USB transmission integrated interface), wifi 5, bluetooth 4.2
Display 10.1″ IPS high brightness touch screen
Resolution 1024*600
OS Android 13
CPU RK3568
GPU Mali G52
RAM LDDR4/4GB
Storage 32 GB

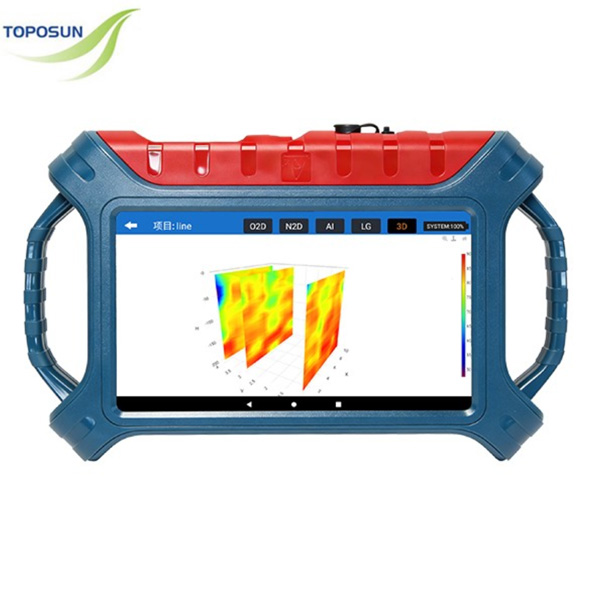

Core Features Auto analysis, free software upgrade, one device for all channels, segmented depth survey, real-time curve, color contour mapping
Other Features GNSS, optional 4G connection
Battery 6000mAh
Main Device Size 35.3cm*21.6cm*7.6cm
