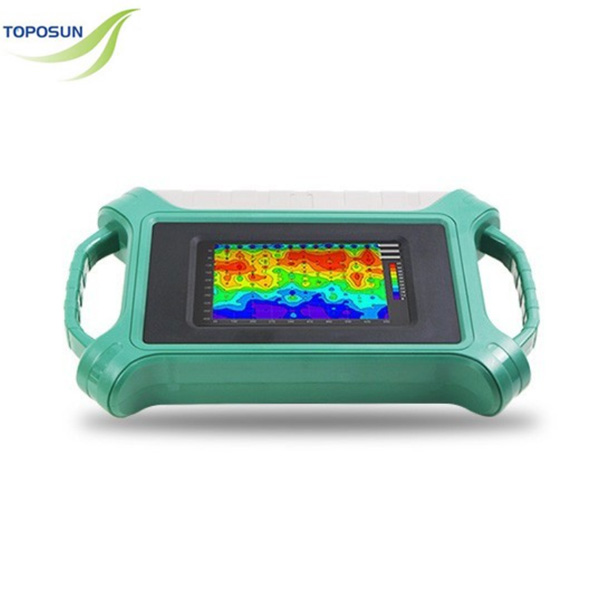

Automatic imaging：7″ Android touch screen into 2D, 3D and curved images in real time.

Precise and stable：Over 50 years of iterative upgrades for high measurement accuracy and stable performance.

Triple screen interoperability：The instrument screen, mobile phone screen and computer screen are interoperable.

Intelligent and flexible：MN electrode and TT probe measurements can be switched, with optional wireless probe or water finding gold band.

TECHNICAL PARAMETERS
Versions TPS-ADMT-300S-X TPS-ADMT-600S-X TPS-ADMT-1200S-X TPS-ADMT-3000S-X
Max Depth (m) ≤300 ≤600 ≤1200 ≤3000
Sensing Mode 1 channel MN input
Number of Channels 1
Depth Options (m) 100-300 100-600 100-1200 100-3000
Scan Interval (m) 10-60 10-80
Connections Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)
Display 7-inch IPS wide-angle 178° visual touch screen
OS Android 6.0.1 / Android 13
CPU ARM Cortex-A7 8-core CPU 2.0Hz / RK3568
GPU OpenGL ES 2.0 / Mali G52
Features Multiple options of depths, 2D/3D plotting, removable battery
Sensing Mode MN/TT
Frequency Range (hz) 1-8K 0.01-8K
Filtering Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional
Discrim. 0.1mV±5% 0.01mV±2%
Acquisition Time (s) 30-280 60-900
Battery 600mA/H
Console Weight 1.6kg
